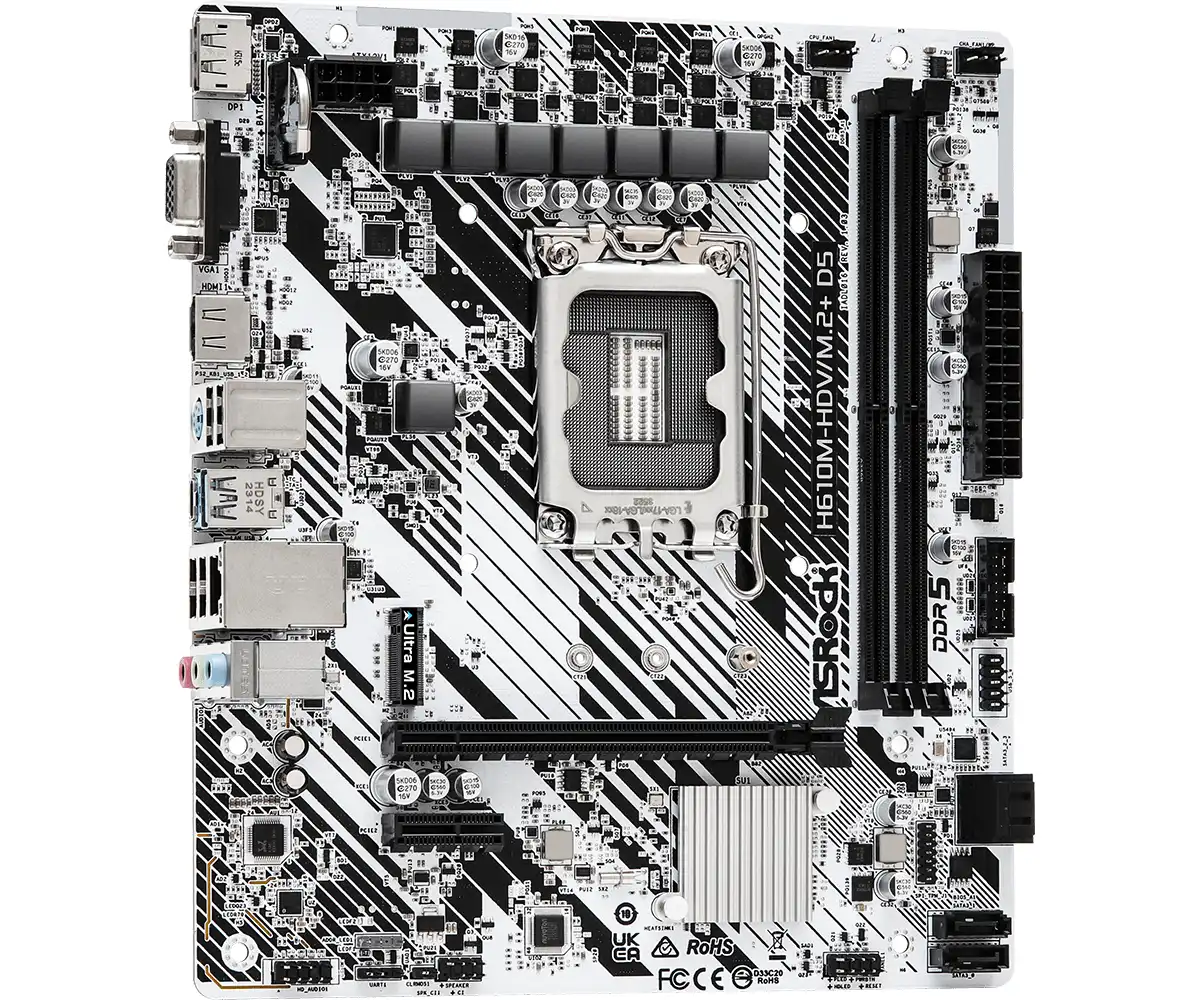

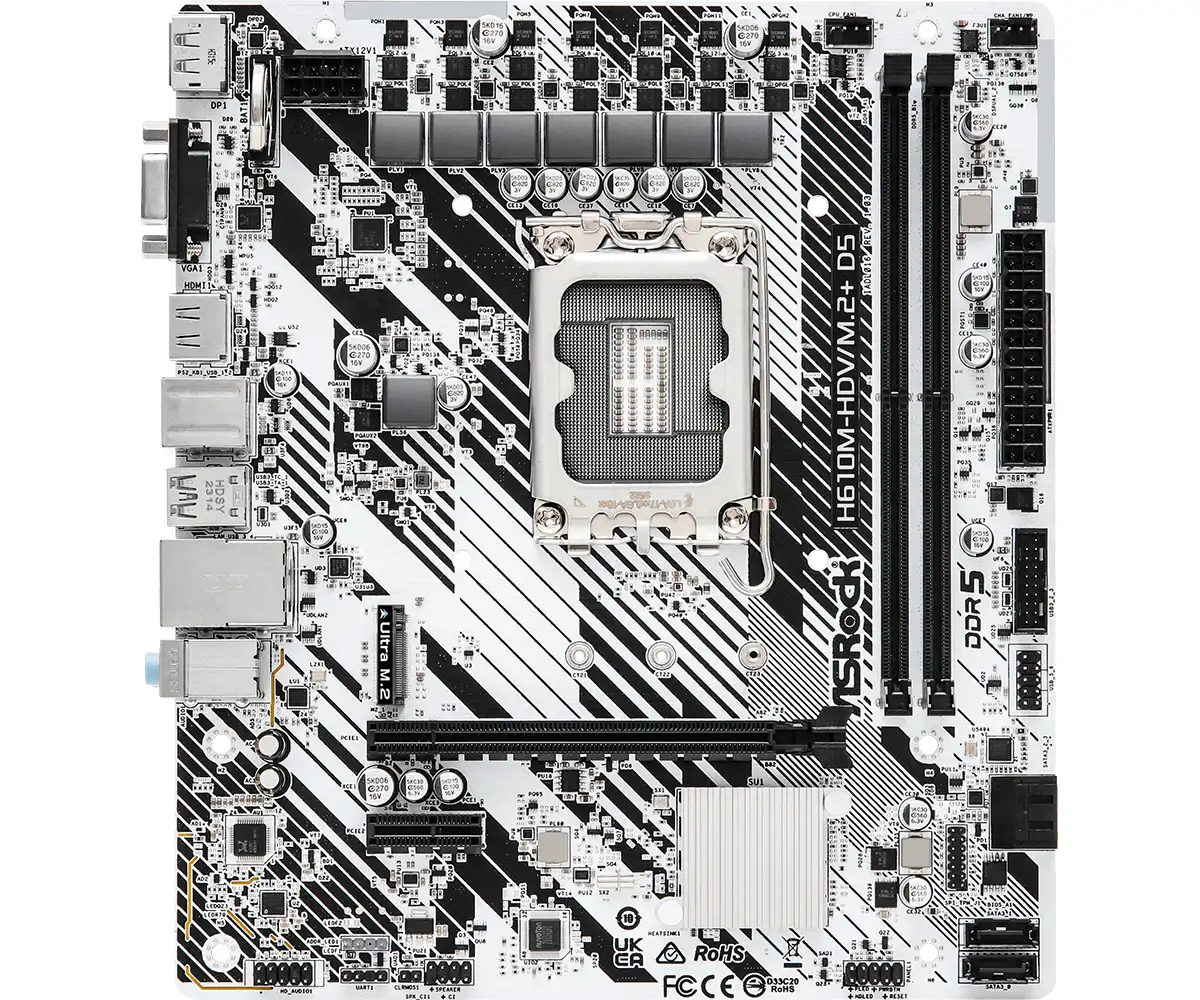

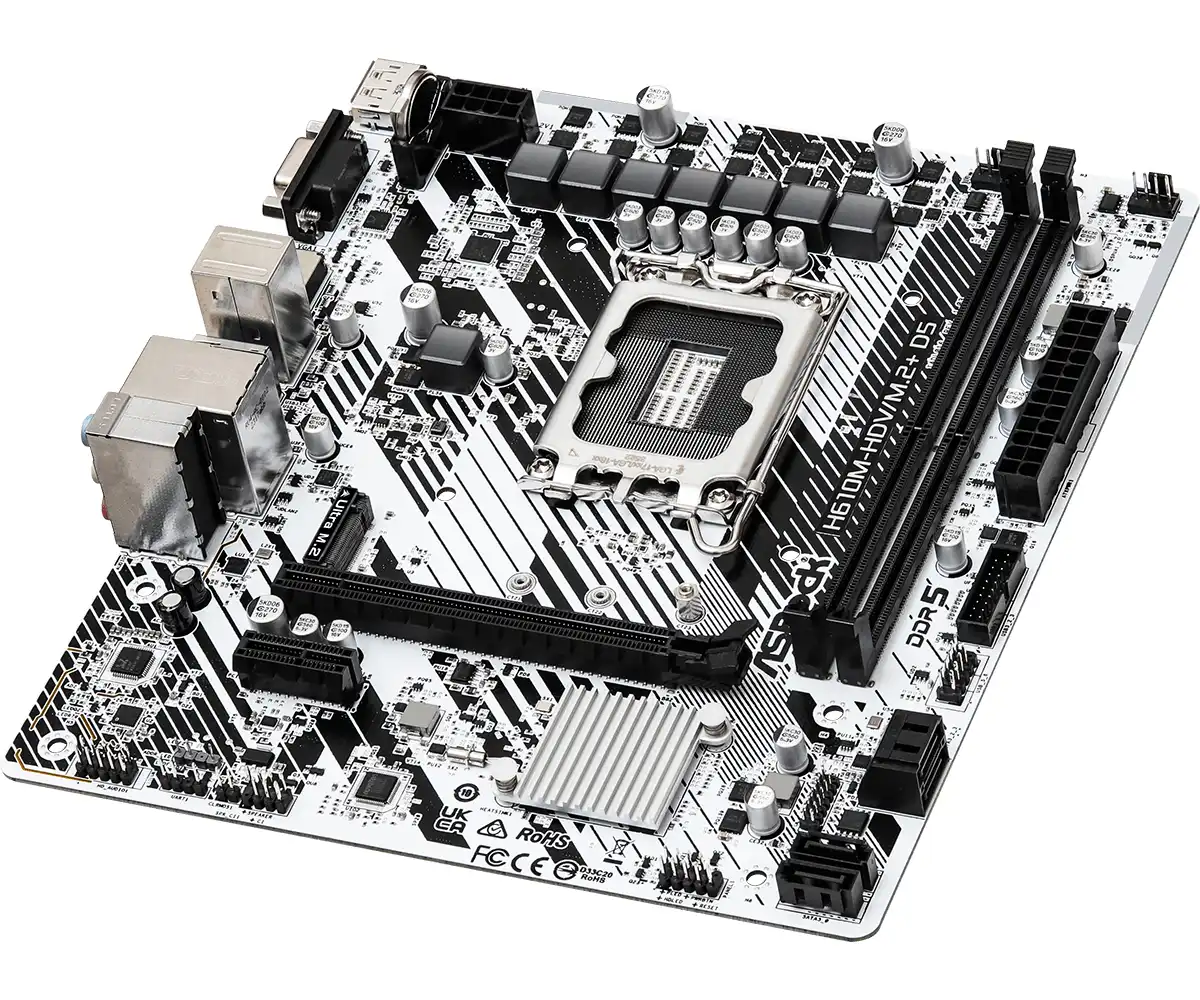

Asrock H610M-HDV/M.2+ D5, Intel H610, 1700

£75.00

Asrock H610M-HDV/M.2+ D5, Intel H610, 1700, Micro ATX, 2 DDR5, VGA, HDMI, DP, PCIe4, 1x M.2

In stock

Description

6+1+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

POLYCHROME RGB
This motherboard features an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

Ultra M.2 32Gb/s (PCIe Gen3 x4)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s.

USB 3.2 Gen1 Type-C
USB 3.2 Gen1 Type-C delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the rear panel of computer case.

Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
step1: Install Auto Driver Installer
step2: Update drivers needed
step3: Done!

3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.

HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.

Specifications

Technical details
Motherboard chipset family Intel
Motherboard chipset Intel H610
Motherboard form factor micro ATX
Component for PC
Audio
Audio output channels 7.1 channels
Performance
Windows operating systems supported Windows 10 x64, Windows 11 x64
Motherboard chipset family Intel
Motherboard chipset Intel H610
Audio output channels 7.1 channels
Motherboard form factor micro ATX
Component for PC
Processor
Processor manufacturer Intel
Maximum number of SMP processors 1
Processor socket LGA 1700
Memory
Number of memory slots 2
Memory slots type DIMM
Supported memory types DDR5-SDRAM
Memory channels Dual-channel
Maximum internal memory 96 GB
Unbuffered memory No
ECC сompatibility Non-ECC
Storage controllers
Supported storage drive interfaces SATA III
Number of storage drives supported 5
Internal I/O
USB 3.2 Gen 2 (3.1 Gen 2) connectors 0
Supported storage drive interfaces SATA III
USB 2.0 connectors 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
TPM connector Yes
Number of SATA III connectors 4
Front panel audio connector Yes
CPU fan connector Yes
ATX Power connector (24-pin) Yes

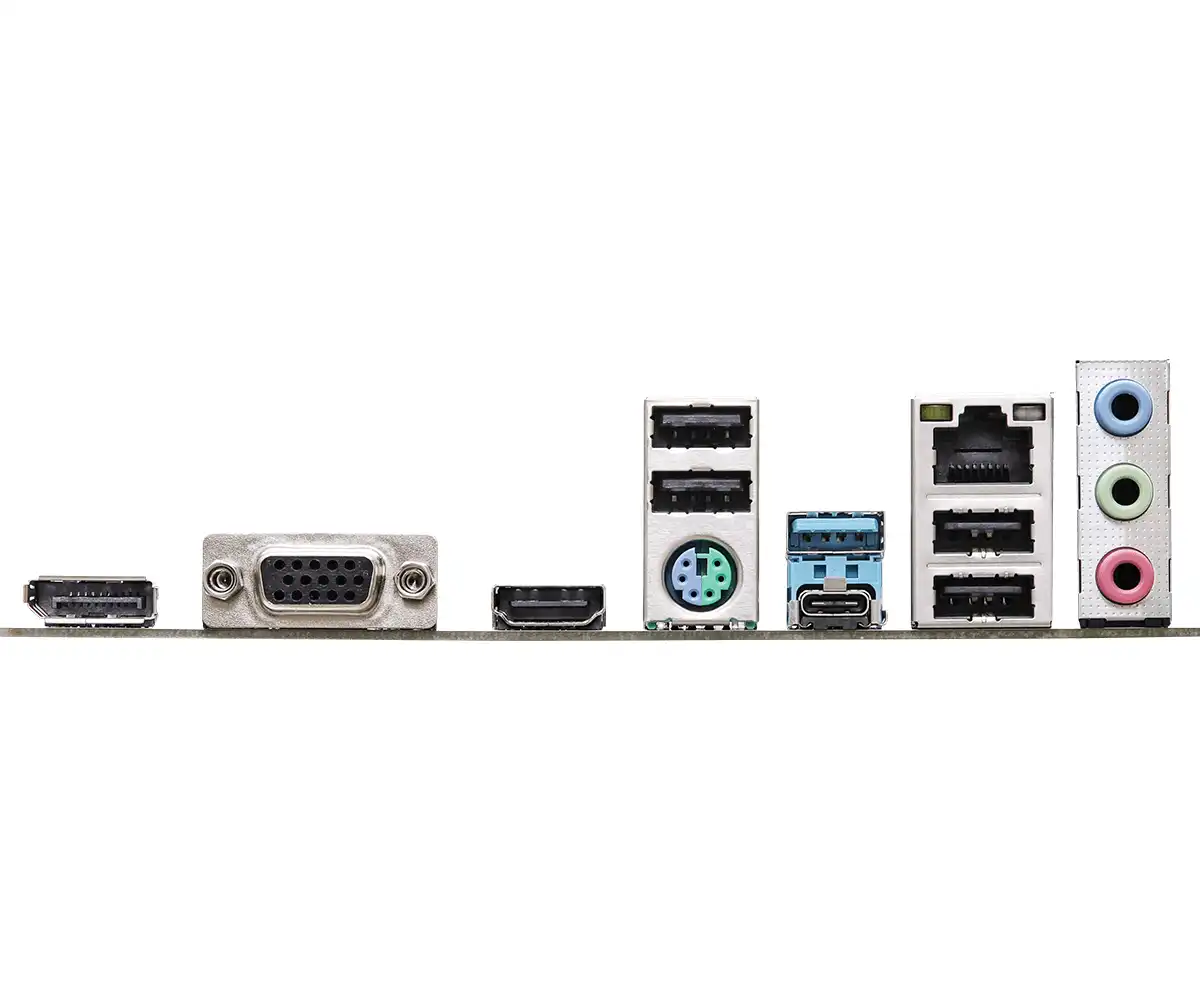

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 0
DisplayPort version 1.4
USB 2.0 ports quantity 0
VGA (D-Sub) ports quantity 1
PS/2 ports quantity 1
HDMI ports quantity 1
Ethernet LAN (RJ-45) ports 1
DVI-D ports quantity 0
DisplayPorts quantity 1
Network
Ethernet LAN Yes
Wi-Fi No
LAN controller Realtek RTL8111H
Ethernet interface type Gigabit Ethernet
Features
Windows operating systems supported Windows 10 x64, Windows 11 x64
Motherboard chipset family Intel
Motherboard chipset Intel H610
Audio output channels 7.1 channels
Motherboard form factor micro ATX
Component for PC
Audio chip Realtek ALC897
Expansion slots
PCI Express x1 (Gen 3.x) slots 1
PCI Express x16 (Gen 4.x) slots 1
BIOS
BIOS type UEFI AMI
BIOS memory size 128 Mbit
Software
Windows operating systems supported Windows 10 x64, Windows 11 x64
Weight & dimensions
Width 220 mm
Depth 193 mm

Additional information

Processor socket

1700
