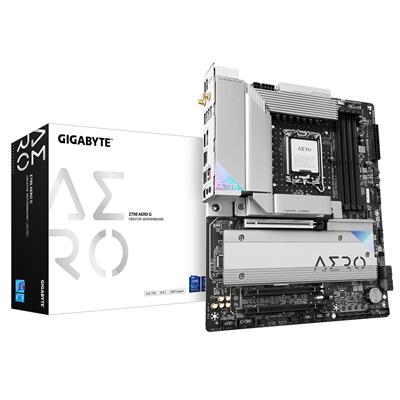

Gigabyte Z790 Aero G Motherboard

Description

Chipset: Intel Z790 Express
CPU Interface: Socket 1700
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 x 288-pin
RAM Speeds: Up to DDR5 7600 (O.C.)
Max. Memory Support: 128GB
PCI Express 4.0 x16: 2
PCI Express 5.0 x16: 1
S-ATA 6Gb/s Port(s): 4
RAID: Raid 0/1/5/10
M.2 Socket(s): 1 x PCIe Gen 5.0 x4, 3 x PCIe Gen 4.0 x4, 1 x PCIe Gen 4.0 x4/SATA
On-Board LAN: Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless NIC: Wi-Fi 6E
Wireless Technology: WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands, Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Bluetooth: v5.3
On-Board Audio: Realtek ALC1220-VB CODEC
On-Board Video: Processor with integrated graphics is required
Back USB 2.0 Port(s): 2
Back USB 3.2 Port(s) Type-A Gen 1: 4
Back USB 3.2 Port(s) Type-A Gen 2: 2
Back USB 3.2 Port(s) Type-C Gen 2: 1
Back USB 3.2 Port(s) Type-C Gen 2×2: 1
Back HDMI Port(s): 1
Back DisplayPort(s): 1
Back LAN Port(s): 1
Back Audio Jack(s): 2
Back S/PDIF Output Port(s): 1
Back Other Port(s): 2 x SMA antenna connectors (2T2R)
24-pin ATX Power: 1
8-pin ATX Power: 1
USB 2.0 Header(s): 2
USB 3.2 Header(s) Gen 1: 1
USB 3.2 Header(s) Gen 2×2: 1
Thunderbolt AIC Connector(s): 1
COM Port Header(s): 1
Front Panel Audio Connector: 1
TPM Header(s): 1
Internal Other Port(s): 2x Addressable LED Strip Headers, 2 x RGB LED Strip Headers, 1 x Noise Detection Header, 2 x Temperature Sensor Headers
Internal Button(s): 1 x Q-Flash Plus, 1 x Reset, 1 x Reset Jumper, 1 x Clear CMOS Jumper
Form Factor: Standard ATX
Product Width: 244mm
Product Length: 305mm
Package Width: 27cm
Package Length: 34cm
Package Height: 8cm
Gross Weight: 2.19Kg
