Description
Form Factor: ATX
Socket: Intel 1700
Chipset: Intel Z790
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 x DIMM
RAM Speeds: Up to 7200+(OC)
Maximum Memory: 128GB
Graphics Ports: 1 x HDMI, 1 x DisplayPort
PCI/PCI Express: 1 x PCIe 5.0 x16, 3 x PCIe 4.0 x16 (support x4 mode) , 1 x PCIe 3.0 x1
Storage: 4 x SATA III, 1 x M.2 (2242/2260/2280/22110) – PCIe, 1 x M.2 (2242/2260/2280) – PCIe, 1 x M.2 (2242/2260/2280/22110) – SATA & PCIe
RAID: Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10
Wireless: Wi-Fi 6, 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Supports 2.4/5GHz frequency band, Bluetooth v5.2
LAN: 2.5GB LAN
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
USB Ports Supported:
1 x USB 3.2 Gen2x2 Type-C (at back)
1 x USB 3.2 Gen2 Type-A (at back)
6 x USB 3.2 Gen1 (2 at back, 4 at mid-board)
8 x USB 2.0 (4 at back, 4 at mid-board)
1 x Front Panel Type-C USB 3.2 Gen2 Header
1 x USB 3.2 Gen2 Type-A (at back)
6 x USB 3.2 Gen1 (2 at back, 4 at mid-board)
8 x USB 2.0 (4 at back, 4 at mid-board)
1 x Front Panel Type-C USB 3.2 Gen2 Header

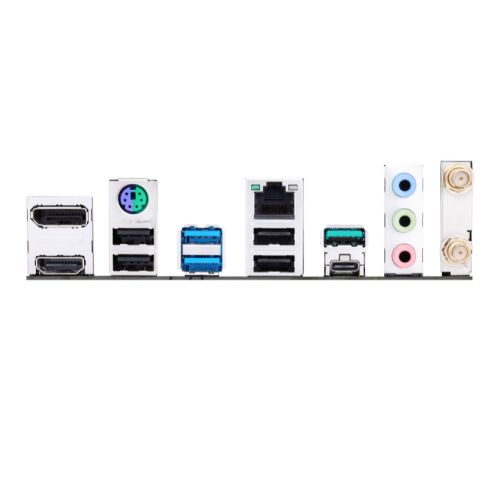

Back Panel I/O Ports:
1 x USB 3.2 Gen2x2 Type-C
1 x USB 3.2 Gen2 Type-A
2 x USB 3.2 Gen1 Type-A
4 x USB 2.0
1 x DisplayPort
1 x HDMI
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo
1 x USB 3.2 Gen2 Type-A
2 x USB 3.2 Gen1 Type-A
4 x USB 2.0
1 x DisplayPort
1 x HDMI
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo
Internal I/O Connectors:
1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
3 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
1 x 4-pin +12V
3 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen2 Type-C
2 x USB 3.2 Gen1
2 x USB 2.0
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
3 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
1 x 4-pin +12V
3 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen2 Type-C
2 x USB 3.2 Gen1
2 x USB 2.0
3 x Addressable Gen2
2 x Aura RGB
1 x Clear CMOS
1 x COM Port
1 x Front Panel Audio
1 x S/PDIF Out
1 x SPI TPM (14-1pin)
1 x 20-5pin System Panel
1 x Thunderbolt (USB4)
2 x Aura RGB
1 x Clear CMOS
1 x COM Port
1 x Front Panel Audio
1 x S/PDIF Out
1 x SPI TPM (14-1pin)
1 x 20-5pin System Panel
1 x Thunderbolt (USB4)
