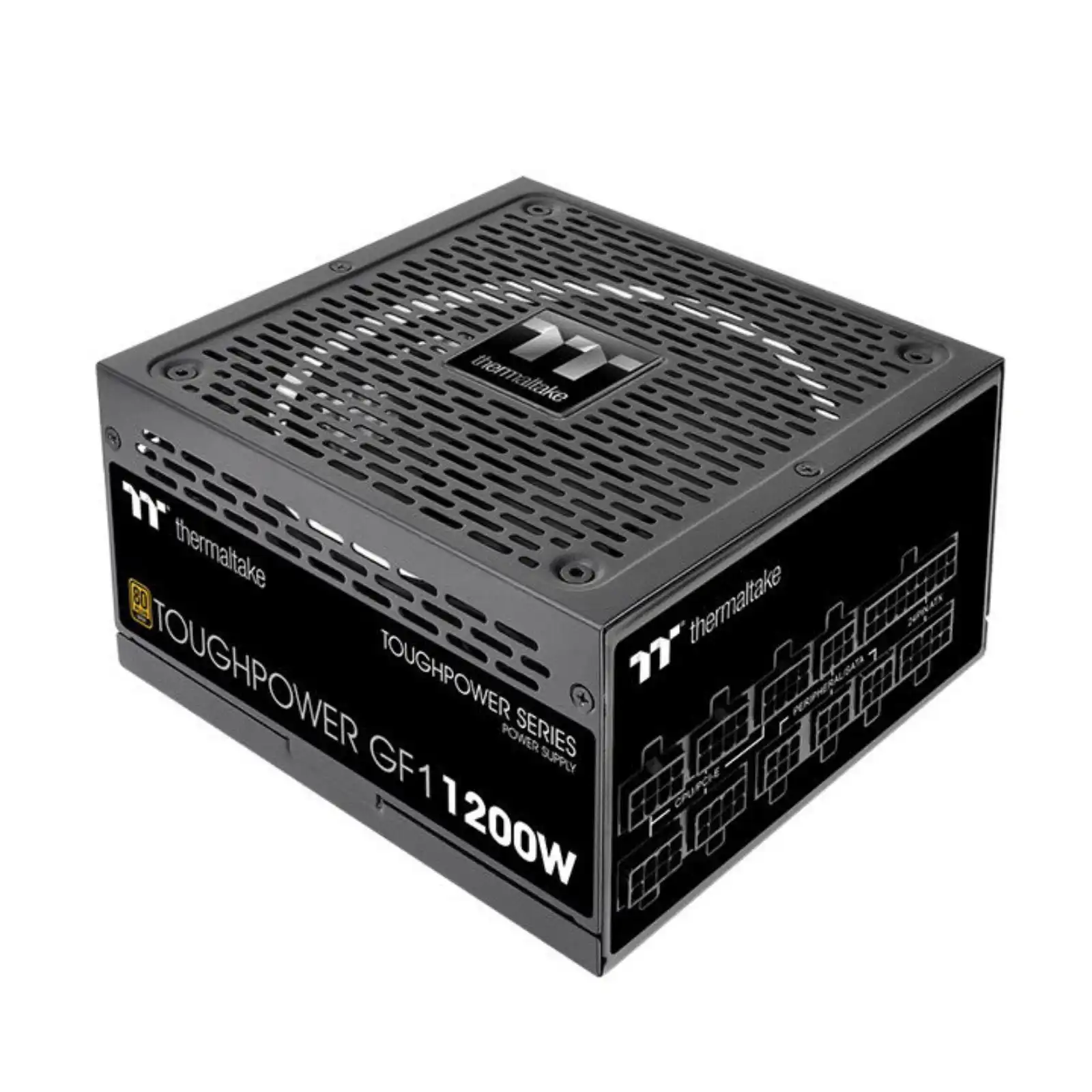

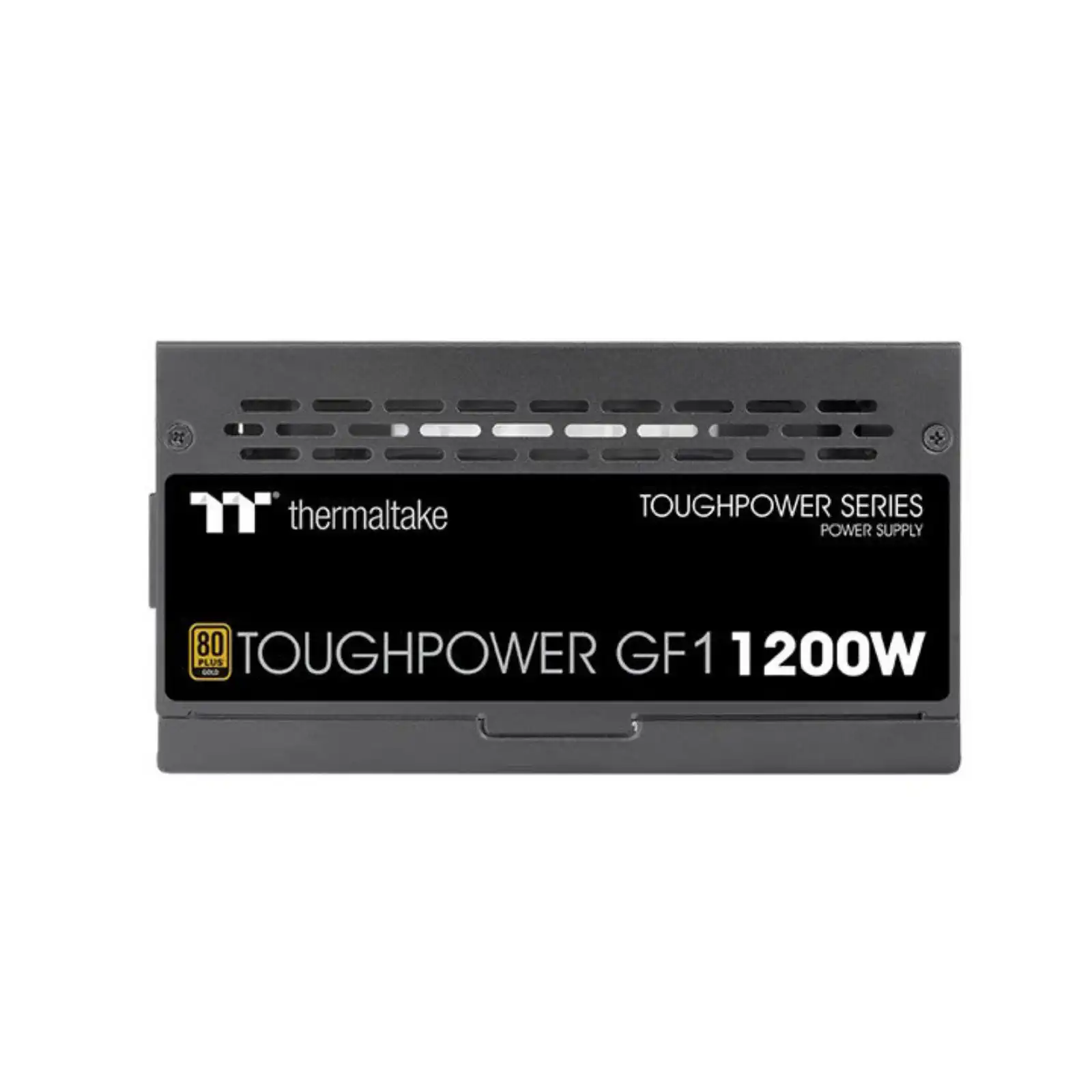

Thermaltake Toughpower GF1 1200W PSU

Thermaltake Toughpower GF1 1200W

The fully modular Toughpower GF1 series is built to deliver 80 PLUS Gold efficiency. The series features a 140mm hydraulic bearing fan, Japanese capacitors and other premium components to help deliver a continuous and stable power with an ambient temperature up to 50°C, while near silent operation and reliable performance are guaranteed. With an ample 10-year warranty, the Toughpower GF1 is able to satisfy the market, where PC enthusiasts are looking for a premium power supply with all the latest features.

Zero Cable Platform
Farewell to messy cables! We have connected the back panel and the PCB with a copper plate for better heat dissipation and impressive output power quality.

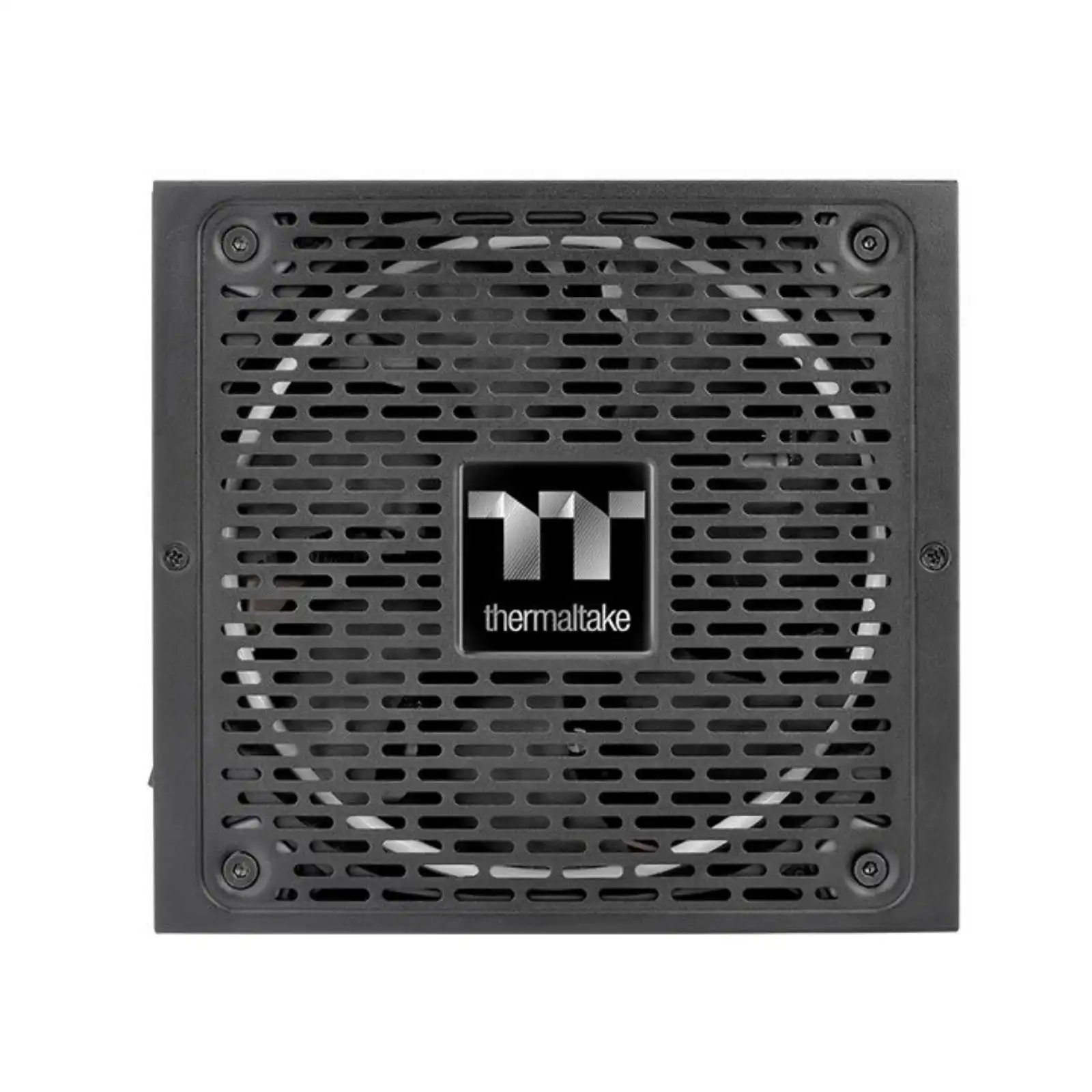

Ultra Quiet 140mm Hydraulic Bearing Fan
Featuring a 140mm hydraulic bearing fan with intelligent RPM controls to help guarantee superior cooling performance and near silent operation.

<30mV Low Ripple Noise
All ripples are lower than 30mV on +12V, +5V or +3.3V from 0% to 100% load to ensure a stable operation and keep your performance-critical components to function reliably for longer.

Extremely Strict Voltage Regulation <±2%
The voltage regulation, more strict than Intel’s standard ±5% for major rails and ±10% for -12V, is set to no more than ±2% for major rails to meet the highest performance.

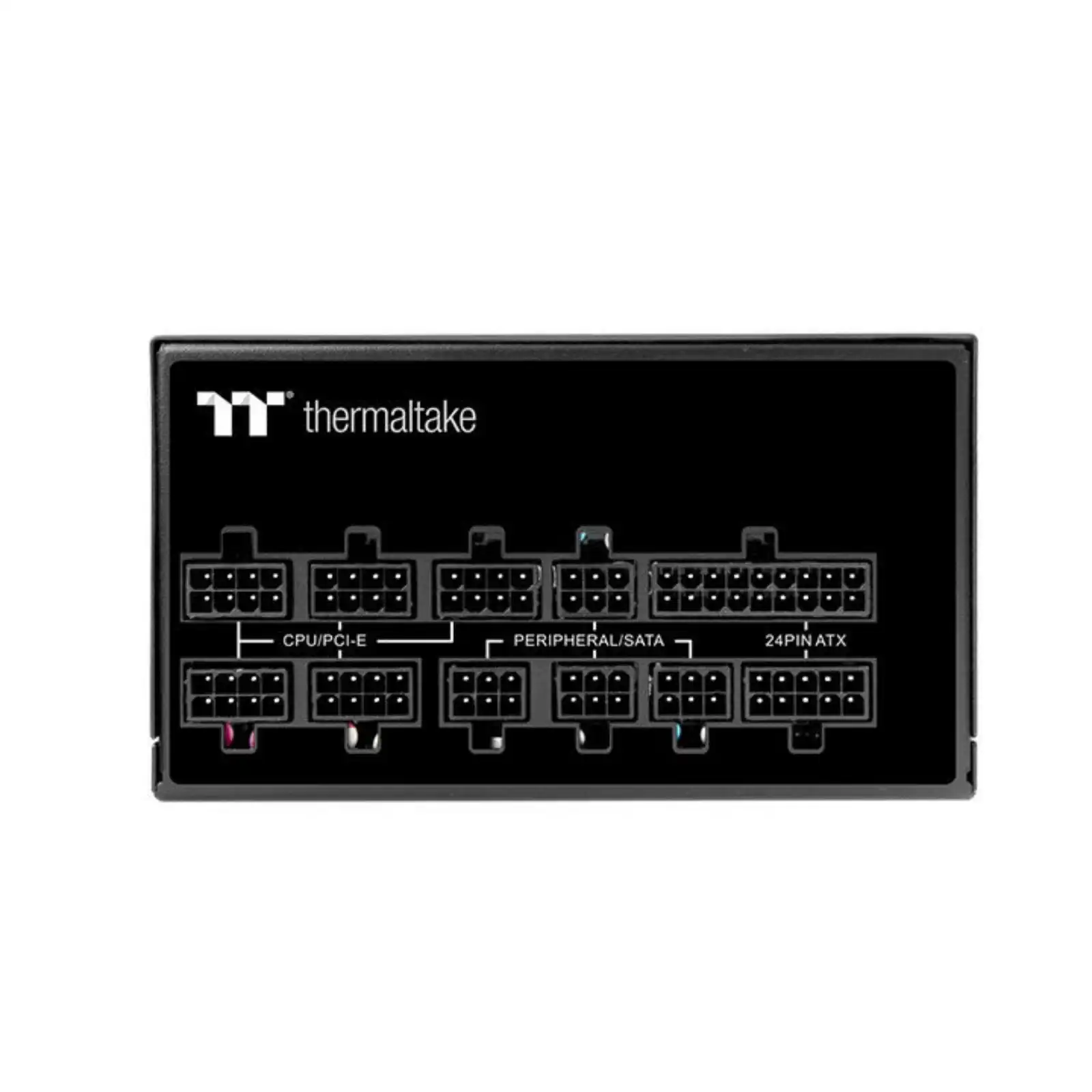

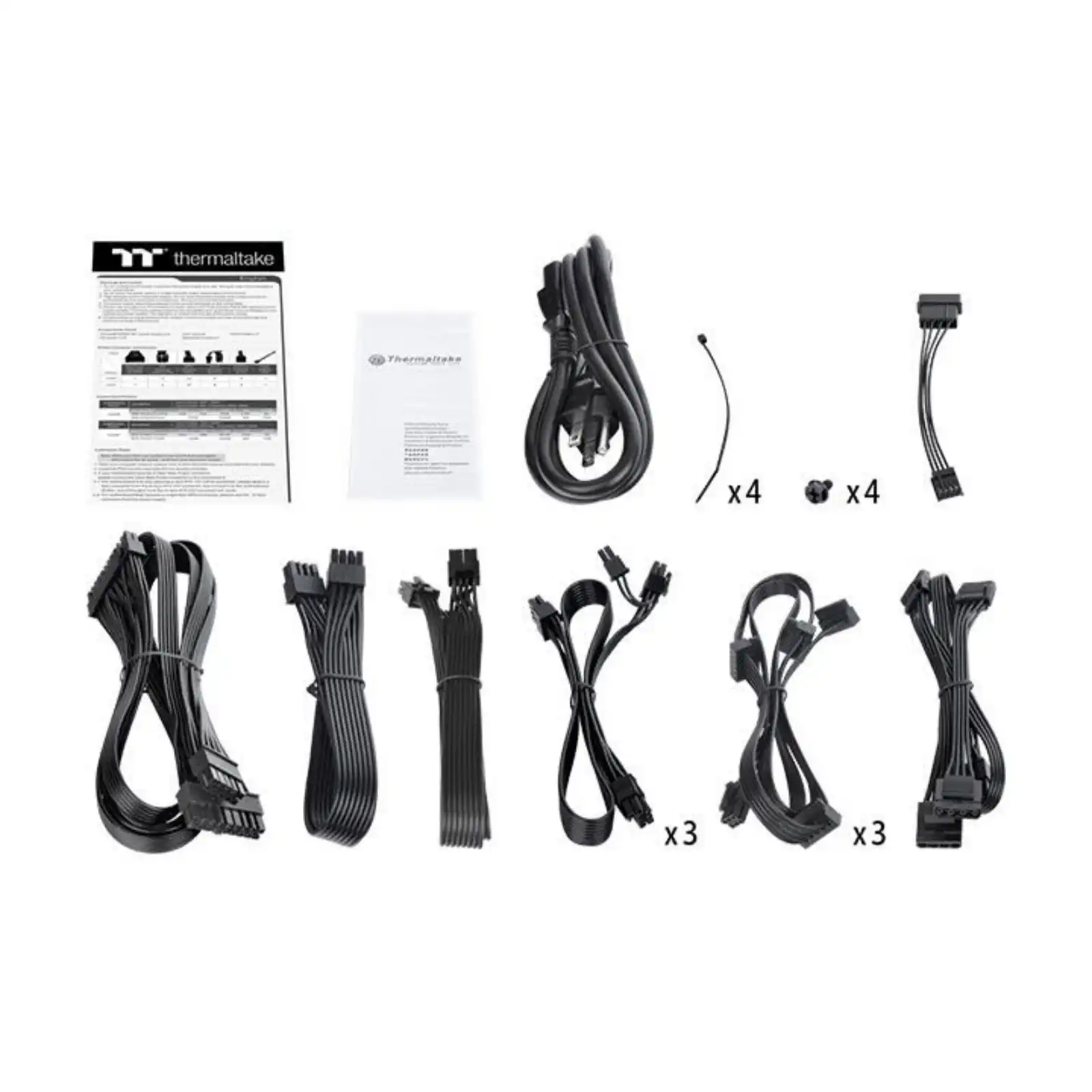

Fully Modular Low-Profile Flat Cable
Offers cable selection for users while powering the system at an advantageous voltage. Low-profile flat black cable makes cable management easier, reduces clutter and increases airflow inside the chassis.

Premium Japanese 105°C/221°F Capacitors
Providing great durability as well as offering the highest stability, while remaining reliable.

High Amperage Single +12V Rail
Powerful single +12V rail ensures a stable and reliable supply to other PC components.

80 PLUS Gold Certified and Intel C6/C7 States Ready
Toughpower GF1 series saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS Gold. The series has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.

Specifications

P/N
PS-TPD-1200FNFAGE-1

Watts
1200W

Form Factor
ATX

Model
TTP-1200AH3FCG

Max. Output Capacity
1200W

Peak Output Capacity
1440W

Color
Black

Dimension ( W / H / D )
150mm(W) x 86mm(H) x 160mm(D)

Weight
1.97kg

PFC (Power Factor Correction)
Active PFC

Power Good Signal
100-500 msec

Hold Up Time
> 16msec at 100% of full load

Input Current
15A

Input Frequency Range
50Hz – 60Hz

Input Voltage
100V – 240V~

Operating Temperature
0°C to + 50°C

Operating Humidity
20% to 90%,non-condensing

Storage Temperature
-20°C to + 70°C

Storage Humidity
5% to 95%, non-condensing

Cooling System
14cm hydraulic bearing fan

Efficiency
Meet 80 PLUSGold at 115Vac input.

MTBF
120,000 hrs minimum

Safety Approval
CE/cTUVus/T�V S�D/FCC/BSMI/EAC

PCI-E 6+2pin
6

Protection
OCP, OVP, UVP, OPP, SCP, OTP
