Description

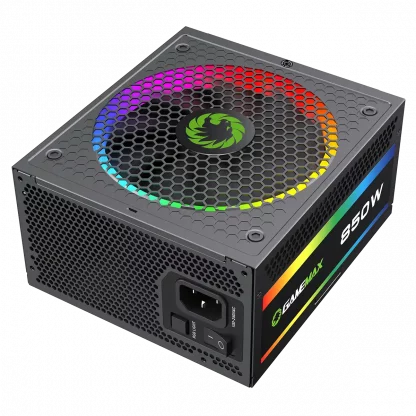

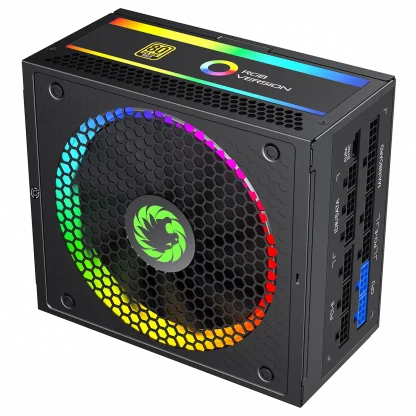

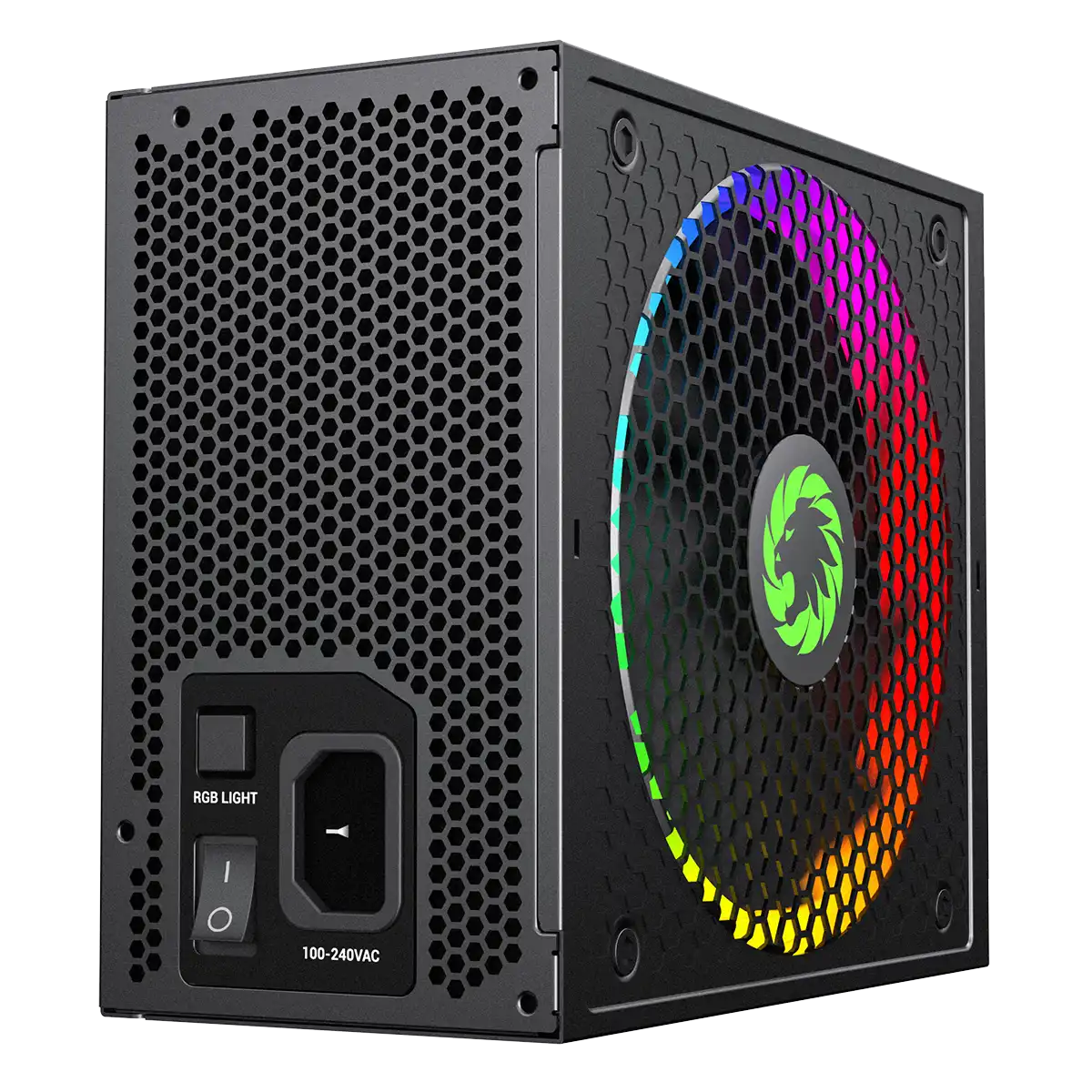

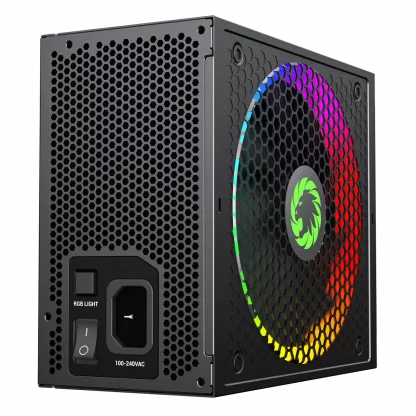

Introducing the RGB 850W Gold-GameMax Premium Edition. This intelligent fully modular unit delivers 850 watts of clean, continuous and stable power, ideal for gaming and workstation PCs that have multiple GPUs and high-performance CPUs.
This premium power supply boasts exceptional stability and durability, featuring 80 PLUS Gold-certified efficiencies, state of the art components, a fluid dynamic bearing fan and a fully modular design.
A full suite of top tier circuit protections ensures that the power that is delivered to your system is safe and reliable in any environment.
Building on the success of the RGB Series, combining features of the existing RGB Range and by adding some small upgrades, including a new design layout & Motherboard Sync capability GameMax have created a cutting-edge modern gaming Power supply, along with a 2-year warranty.
Key Features
- 80 PLUS Gold Certification – Trusted with an 80 PLUS Gold certification and Intel C6/C7 States Ready, this powerful Power Supply has an energy efficiency of 90 percent or higher and has been optimised to work with all generations of Intel processors to achieve maximum energy saving.
- 12V Current Output – Premium components and a powerful single 12-volt current output of 70A guarantees the performance is always high of the components at the heart of your system.

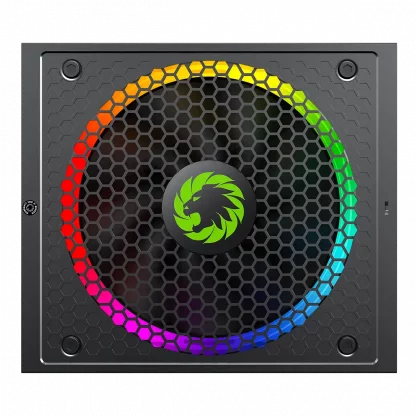

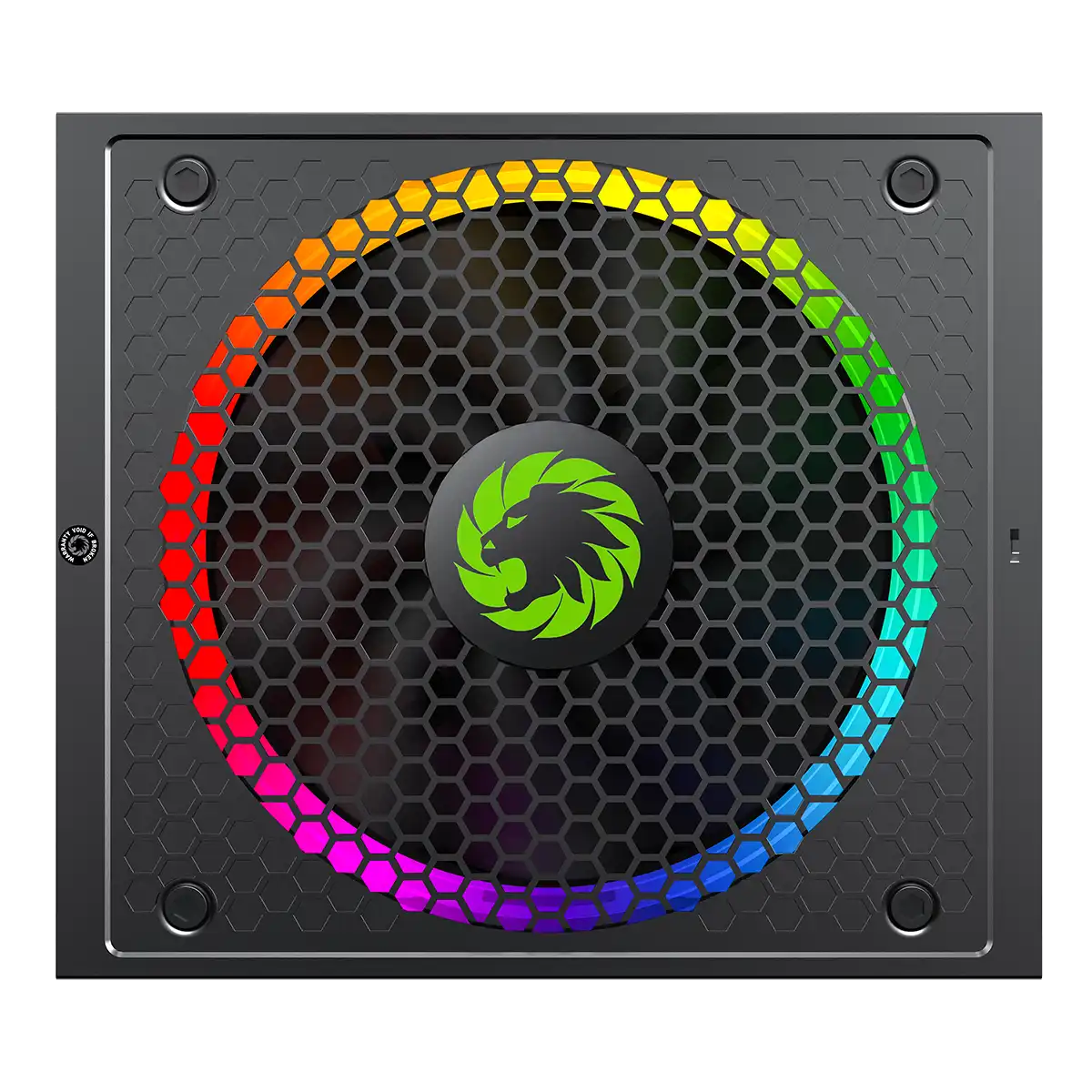

- Fluid Dynamic Bearing – Using a 140mm 9 blade fan with a Fluid Dynamic Bearing provides high airflow and with smarter RPM control for a silent, reliable performance and a longer lifespan.

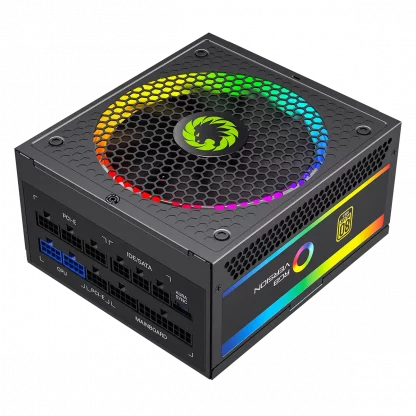

- 140mm ARGB Fan – A pre-installed 140mm ARGB fan included is a 256 RGB colour cooling fan with 25 manual colour modes to choose from at the touch of a button helps deliver beautiful lighting to the internal chassis and add some style to your build.
- Motherboard Software – The ARGB lighting effects can be synced through the Motherboard which supports ARGB function, 5V 3-Pin Addressable RGB header, including ASUS AURA, MSI Mystic Light, Gigabyte Fusion 2.0 & ASRock. Customise the look with endless possibilities with 16.7 million static modes and 12 pre-set lighting effects.

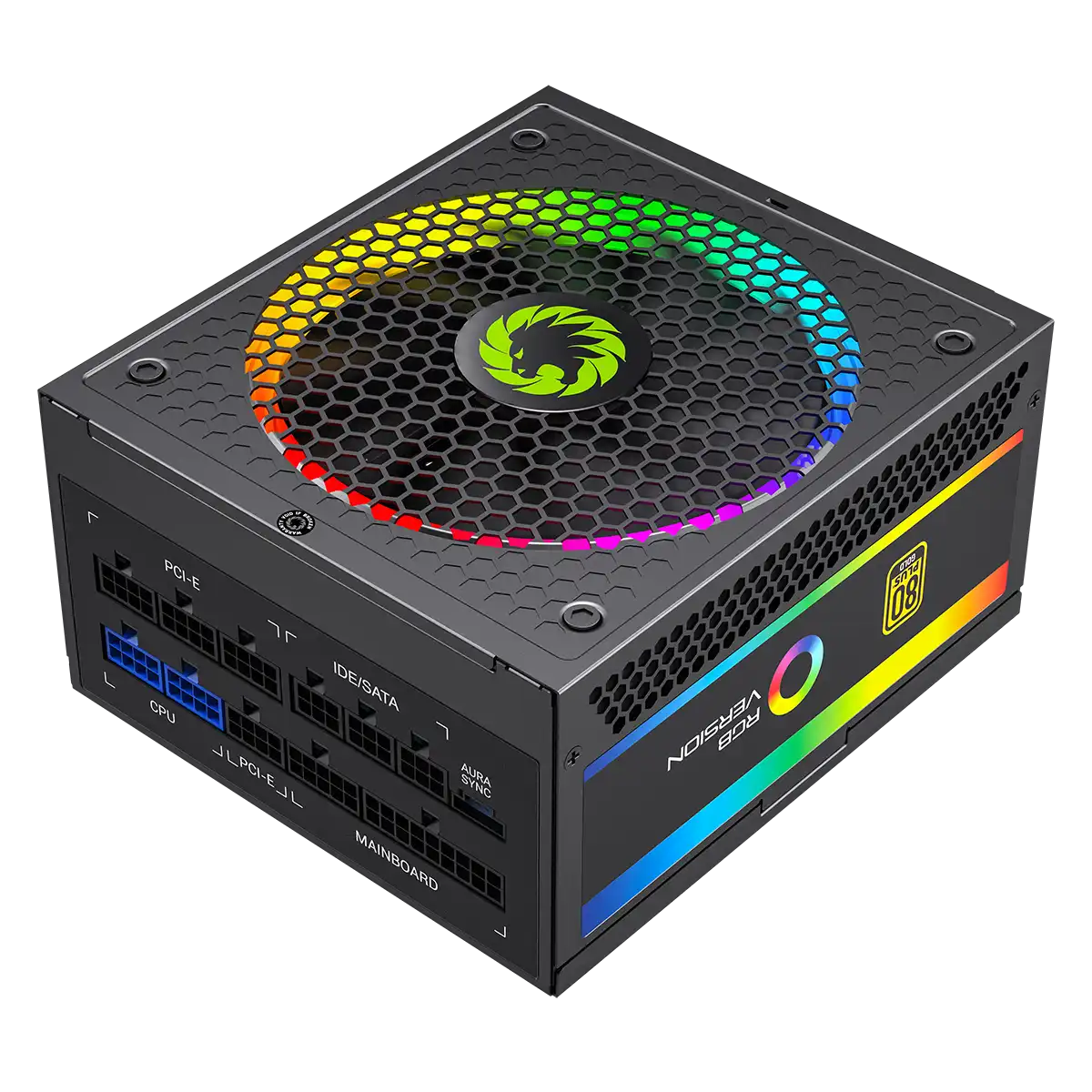

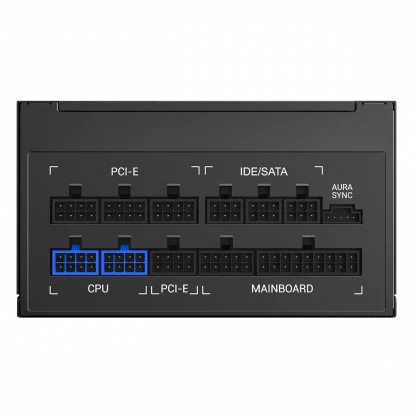

- Modular Cable Configuration – A Modular cable management design lets you use only the cables you need. Improved airflow and save space and create a cleaner-looking build with the low-profile flat black cables.
- Made For High-End Graphics Cards – Three 8pin (6 + 2 x 2 cables) are included supporting the latest NVIDIA RTX-Series and AMD RT / RX Series GPUs. Delivers a continuous and stable power output.
- Hardware Protection – A full line up top tier circuit protections keeps your build running strong and your hardware safe – OVP (Over Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), UVP (Under Voltage Protection) & OTP (Over Temperature Protection).
- Warranty – The GameMax RGB-850 Pro PSU comes with 2-year warranty.
Specifications
Fan Information: |
|
Fan Control: |
Temperature Control |
M.T.B.F.: |
50,000 Hours |
Electrical Features: |
|
Operating Temperature: |
0-50 Degree Celsius (derating from 100 Percent to 80 Percent from 40 Degree Celsius to 50 Degree Celsius) |
M.T.B.F.: |
100,000 Hours (@ 25 C, Excl. Fan) |
AC Input: |
Full Range |

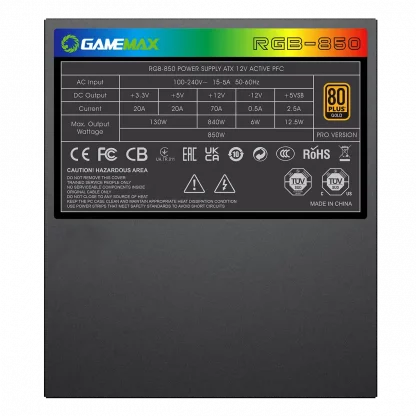

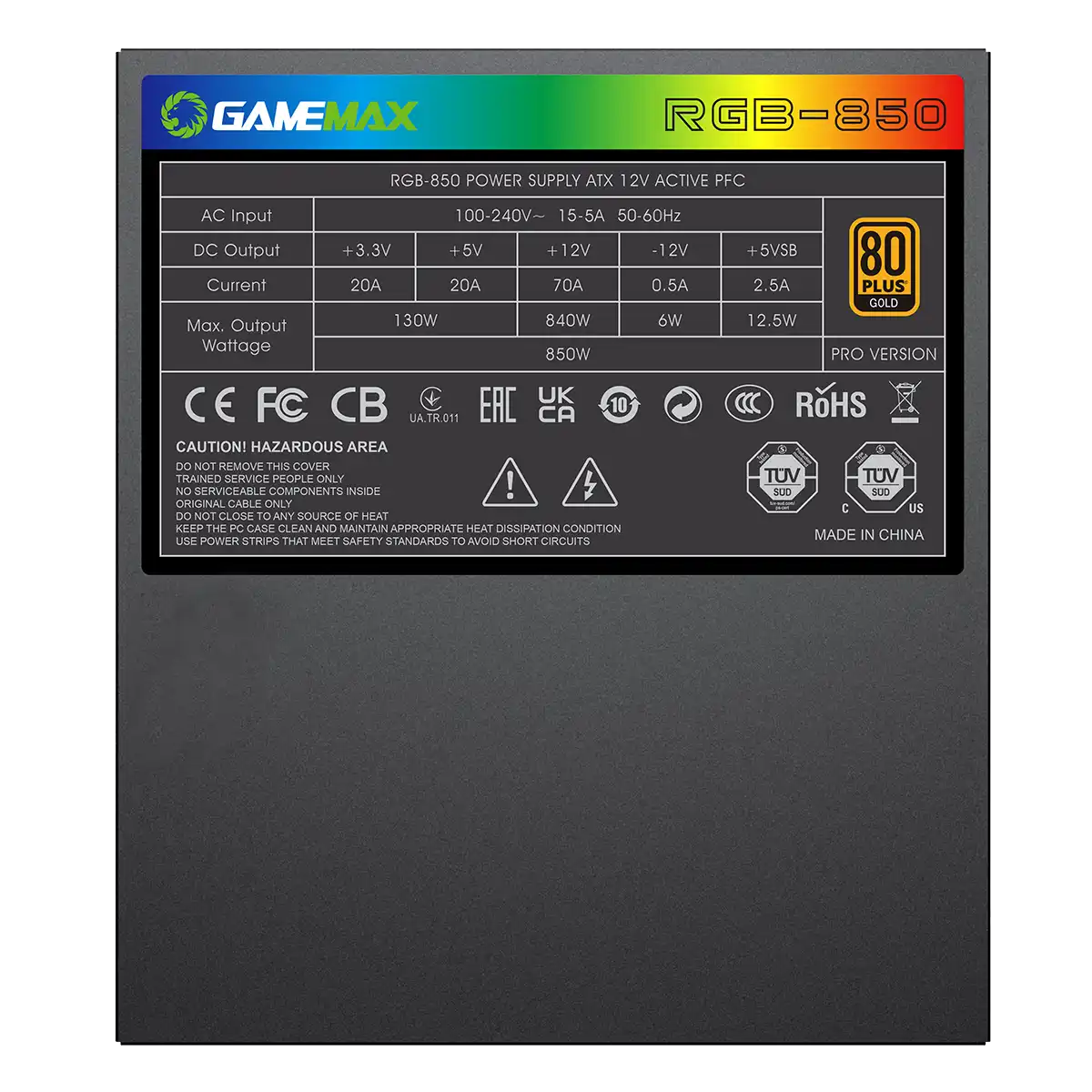

PSU Specifications
AC INPUT: 100-240 VAC 15-5A 50-60HZ |
DC
Output
Max |
+3.3V |
+5V |
+12V1 |
-12V |
+5VSB |
20A |
20A |
70A |
0.5A |
2.5A |
850W |

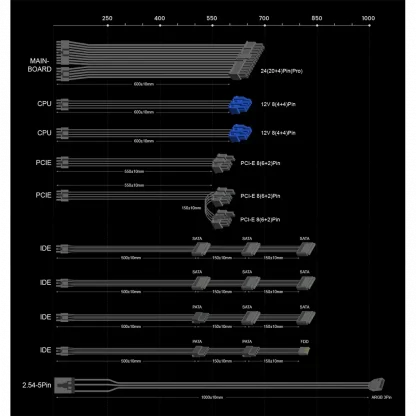

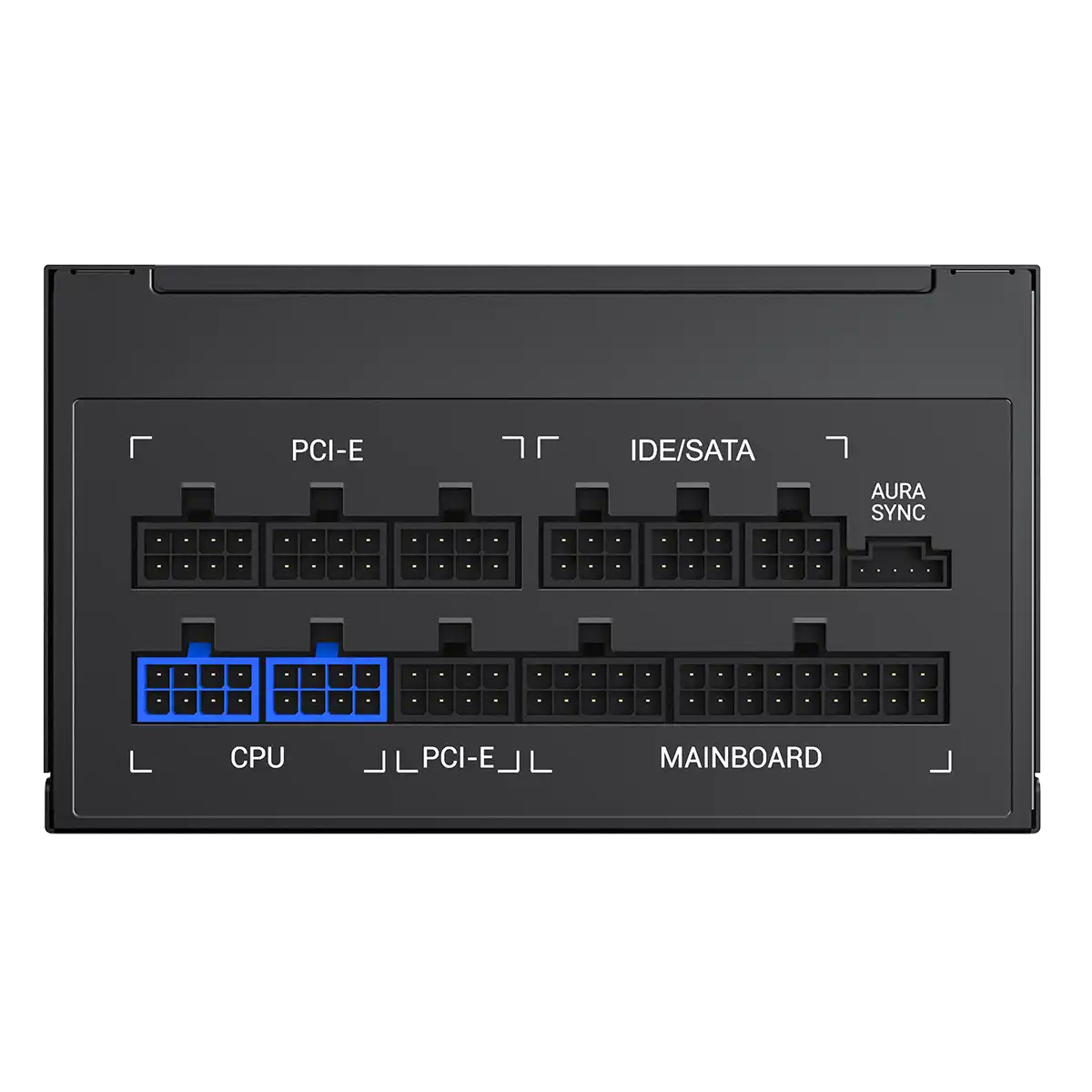

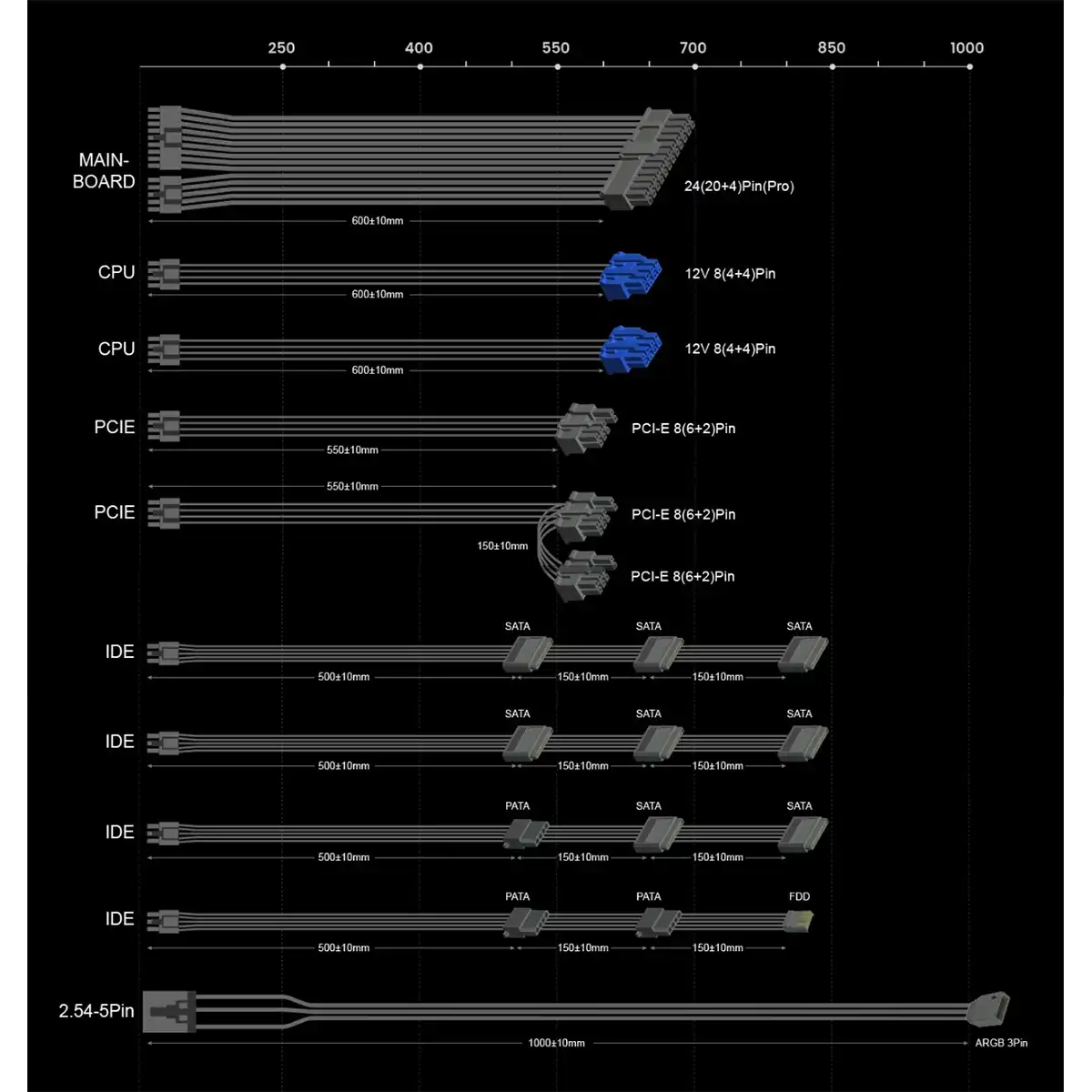

Connectors
|
20+4 Pin Main Connectors:
1 (Modular) |
|
4+4 Pin 12V Connectors:
2 (Modular) |
|
SATA Connectors:
8 (Modular) |
|
4-Pin Molex Connectors:
3 (Modular) |
|
6+2 Pin PCI-e Connectors:
3 (Modular) |
|
Floppy Drive Connectors:
1 (Modular) |
Detailed Specifications
Dimensions: |
150mm x 85mm x 168mm (W x H x D) |
Input Voltage: |
100-240 VAC |
Input Current: |
15-5A |
Input Frequency Range: |
50-60HZ |
PFC: |
Active PFC |
Power Good Signal: |
100-500ms |
Hold Up Time: |
>17ms |
Efficiency: |
90% |
MTBF: |
100,000 Hours At 25 Degrees Celsius, Excl. Fan |
Protection: |
OPP / OVP / UVP / OCP / SCP / OTP |
Power: |
850W |
Operation Temperature: |
0-50°C |
Safety: |
cTUVus / TUV / CB / CCC / EAC / CE / RoHS / UKCA |
Cooling: |
140mm ARGB LED Fan |
Noise: |
<17dBA |
80 Plus Certified: |
Yes – 80 Plus Gold |
General Specifications
Manufacturer Part Number: |
RGB-850PRO |
EAN Number: |
6931858724036 |
Has Mains Plug: |
No |
Colour: |
Black |
What’s In The Box: |
PSU
Modular Cables
AURA Sync Cable
Cable Ties
Screws
Manual |
Unit (Product) Dimensions (mm): |
150mm x 85mm x 168mm (W x H x D) |
Packaging Dimensions (mm): |
366mm x 235mm x 132mm (W x H x D) |
Net Weight (KGs): |
1.55 KGs |
Gross Weight (KGs): |
2.6 KGs |
|
